NETWORK CAMERA · 10 GBE

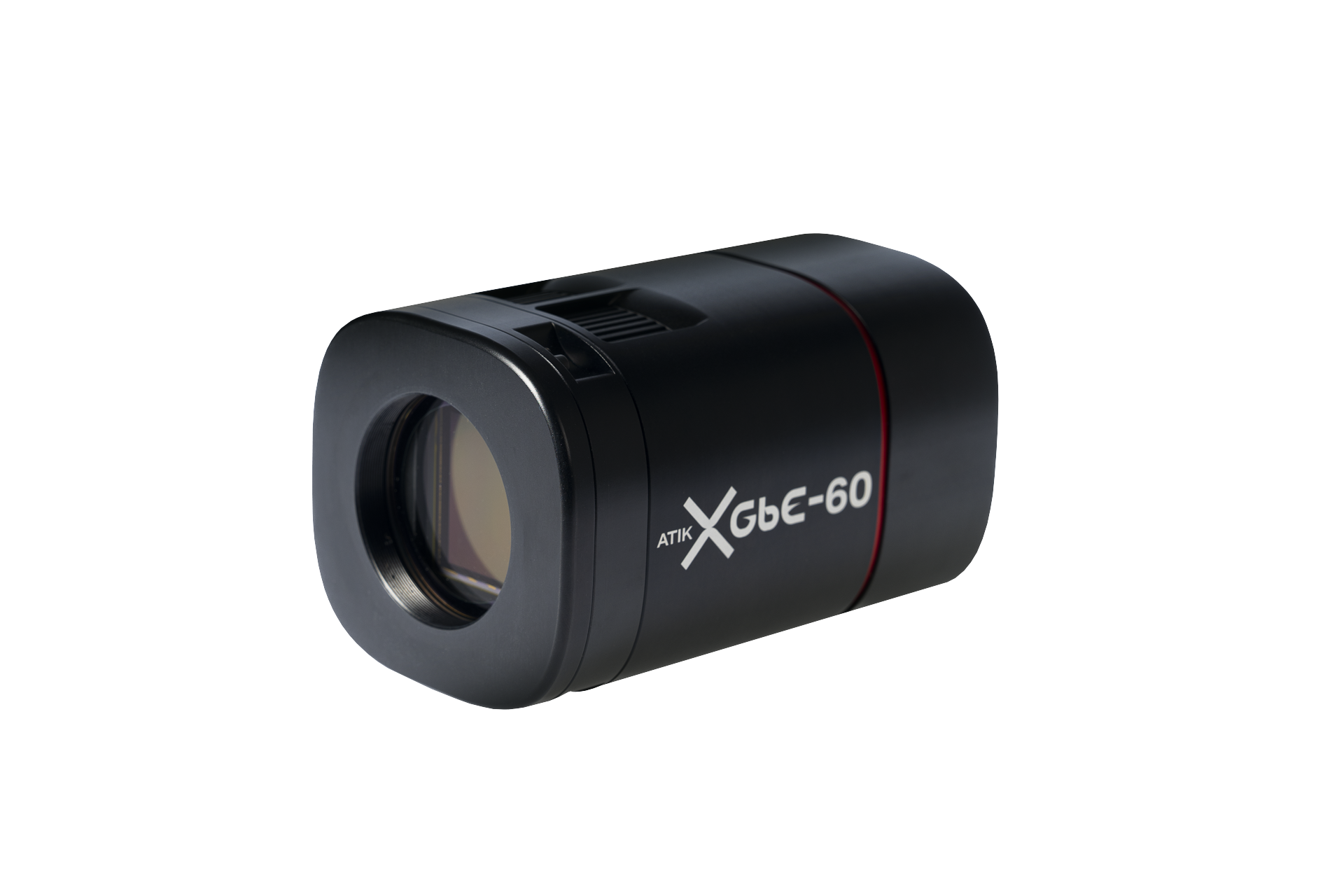

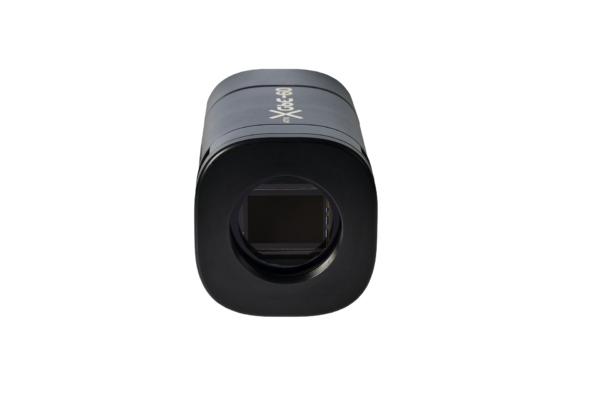

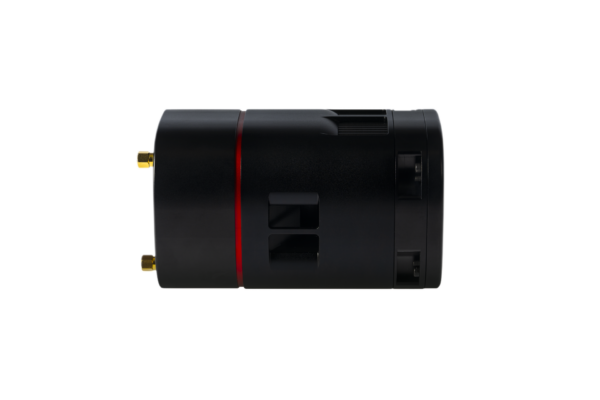

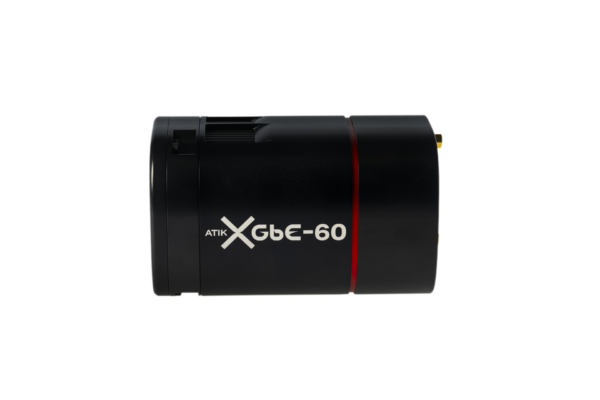

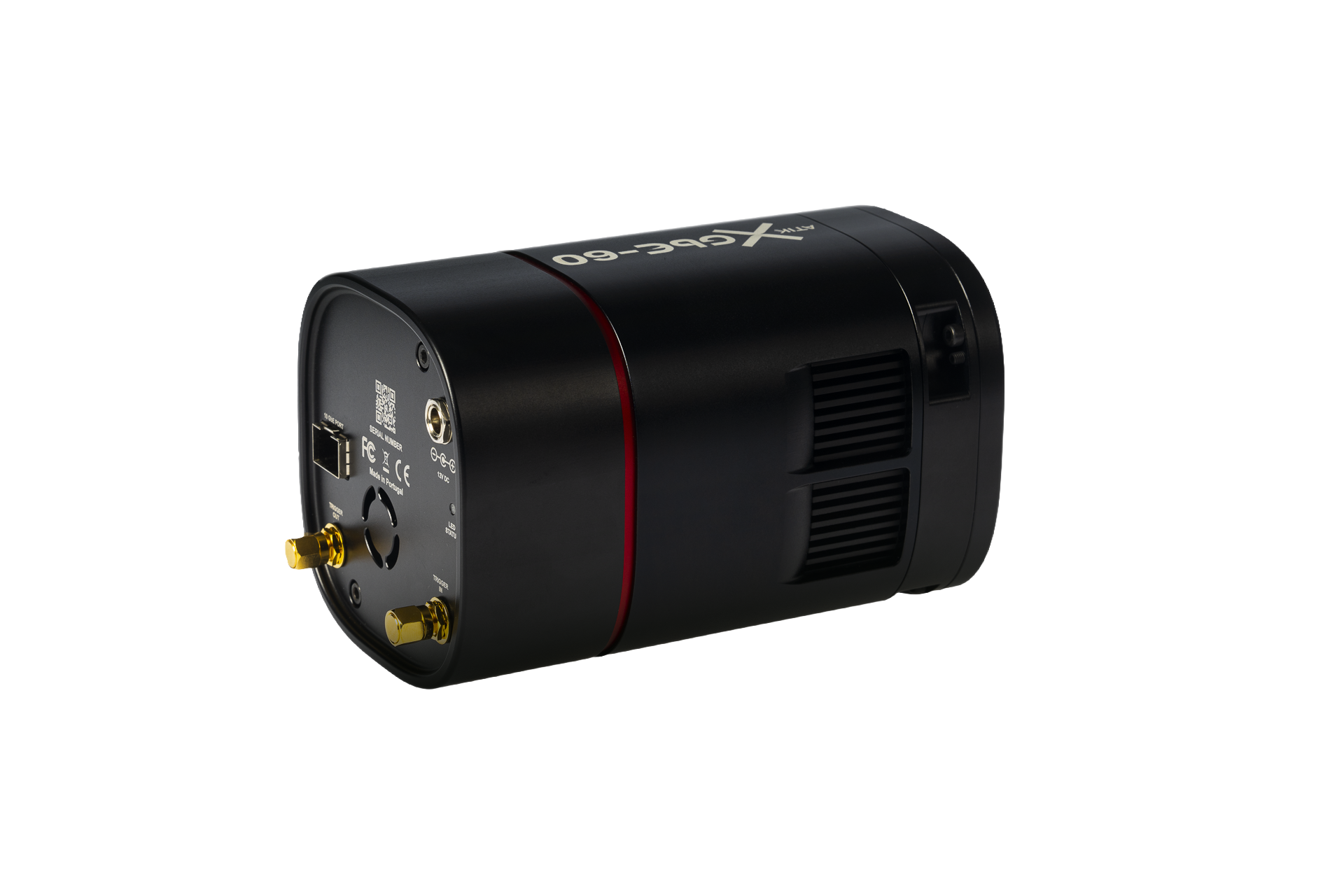

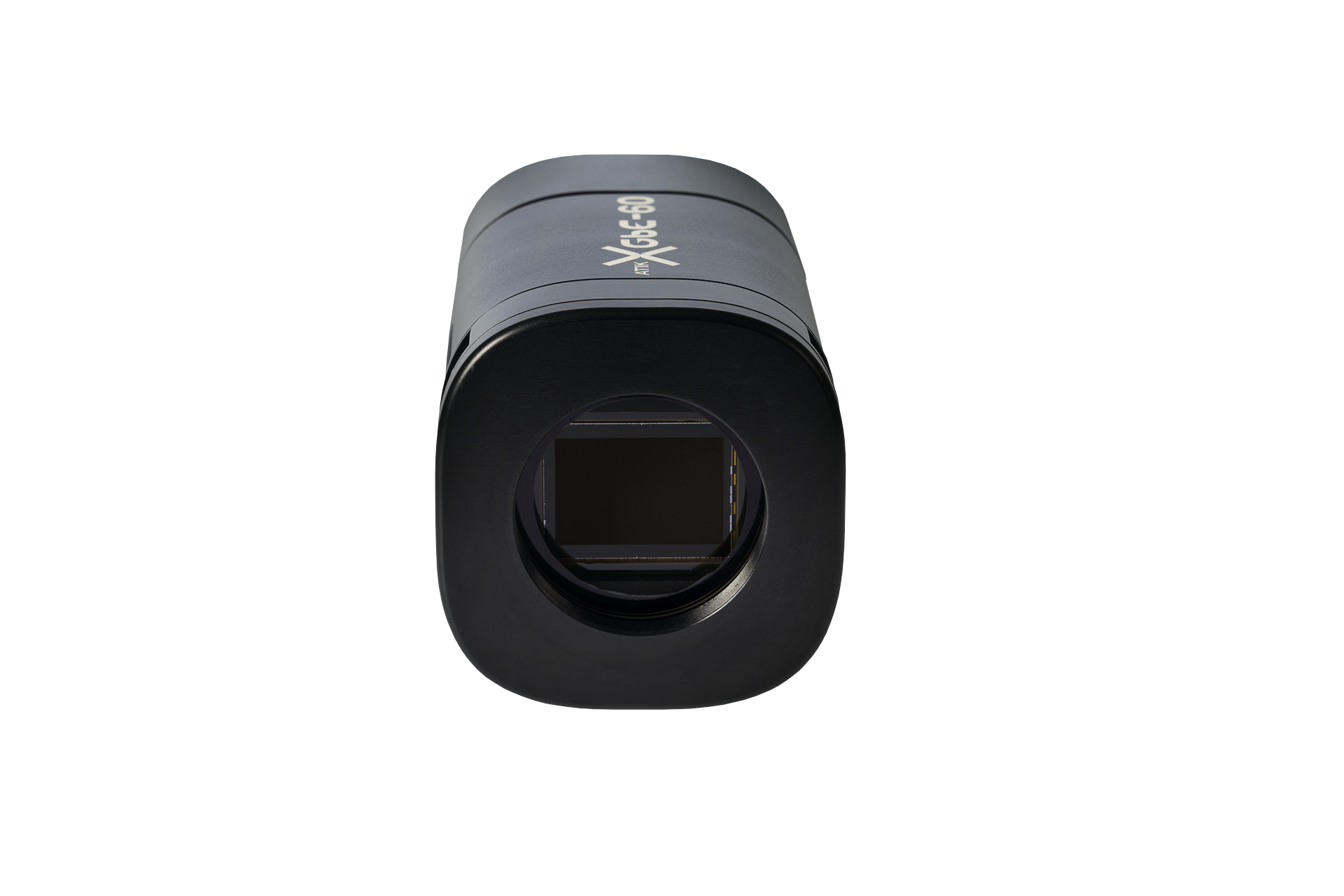

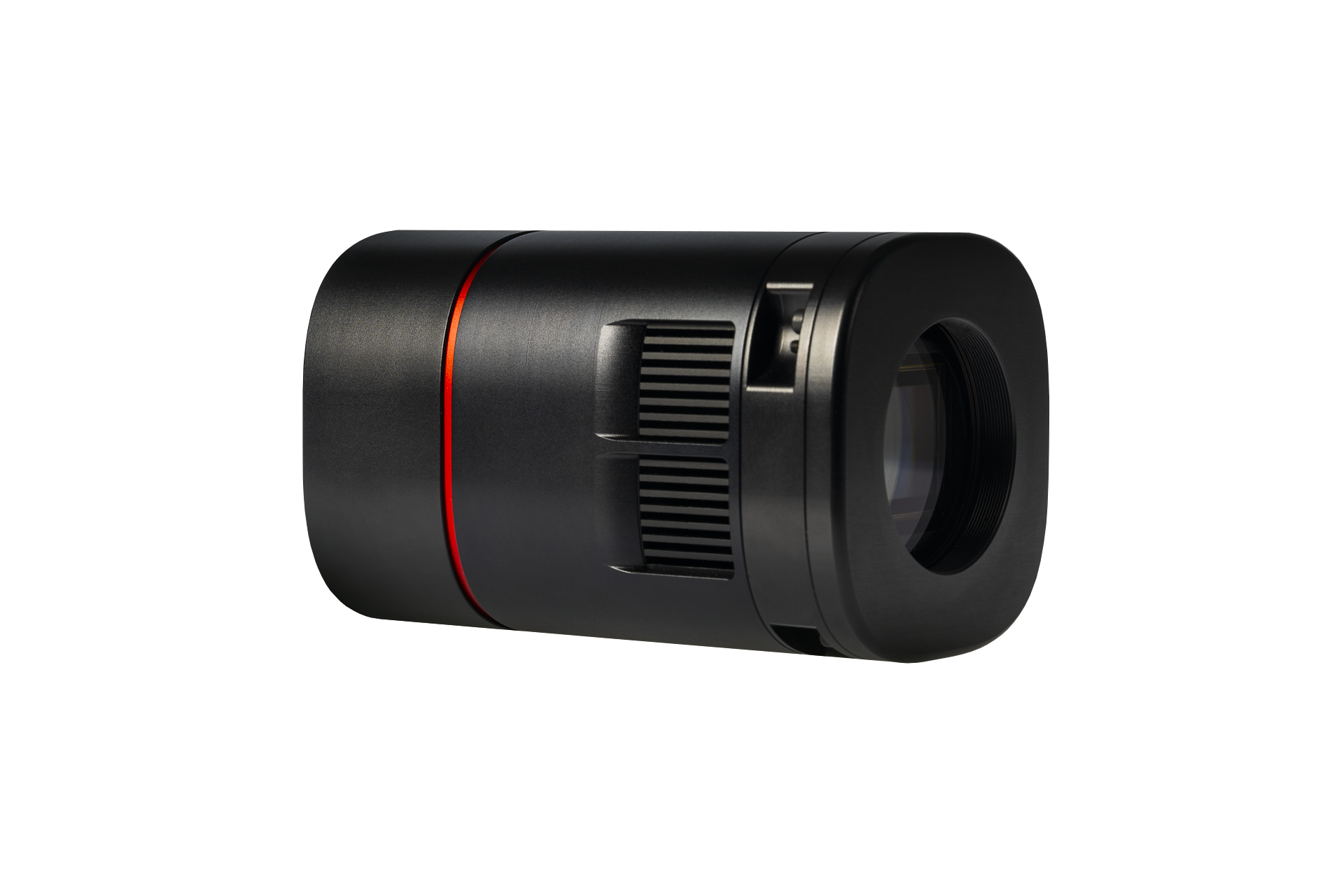

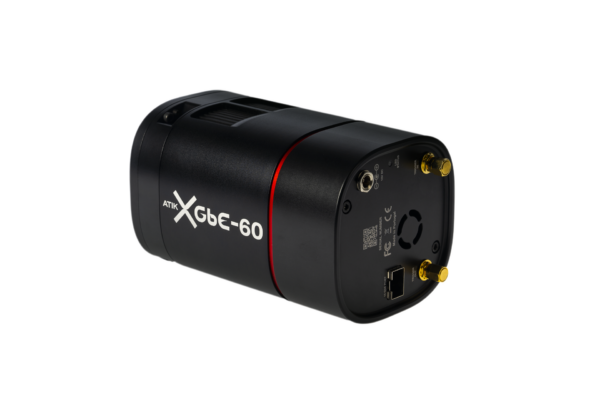

XGbE-60
Our most recent camera operates as a native 10 GbE IP device, integrating effortlessly into SSA/SDA network infrastructures. Perfect for multi-camera installations, it ensures reliable performance across complex imaging systems.
Built around the Sony IMX455 full-frame CMOS sensor and a 16-bit ADC, the XGbE-60 delivers high-resolution 9576 × 6380 imagery with the bandwidth headroom to stream uncompressed frames across distributed observation networks.

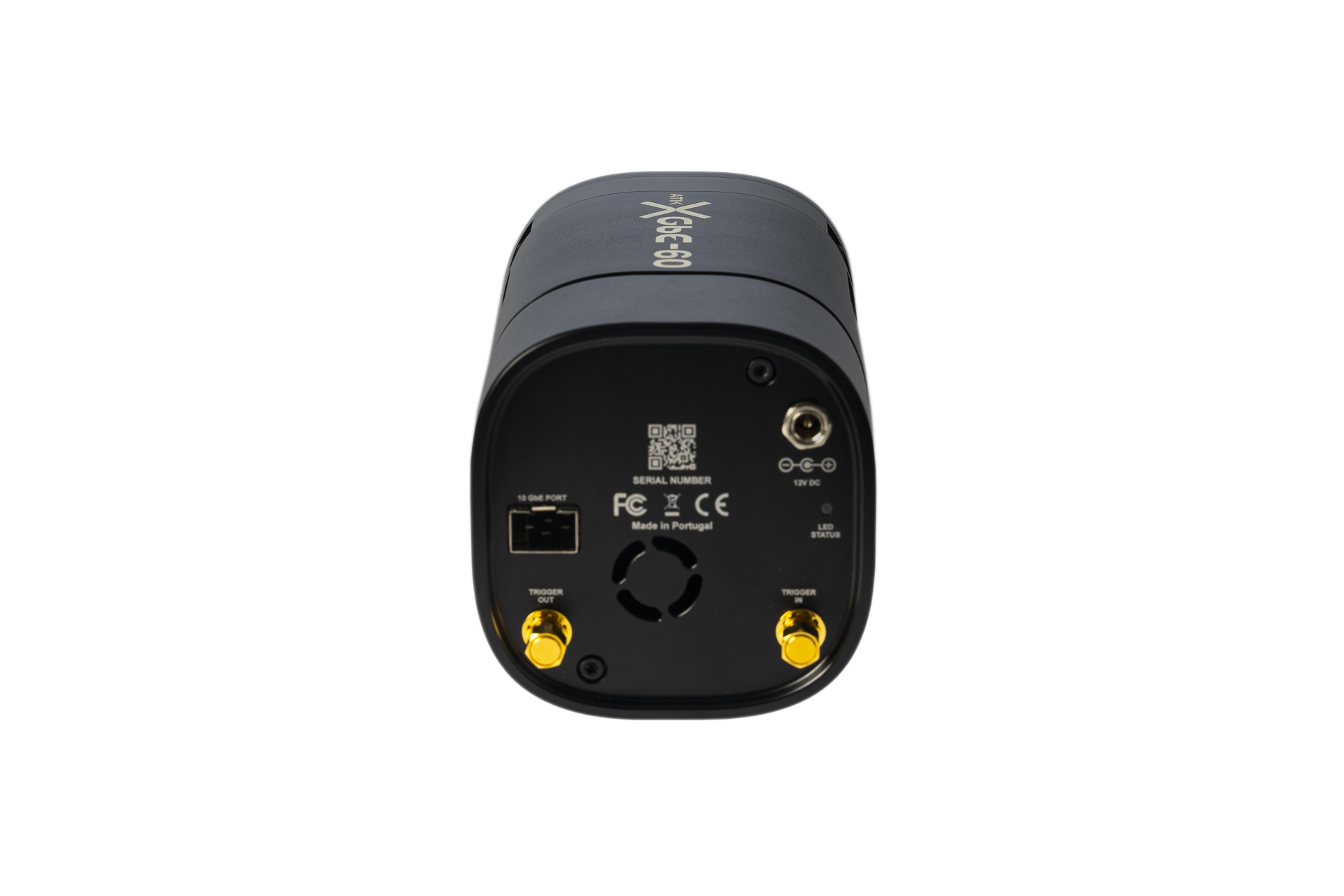

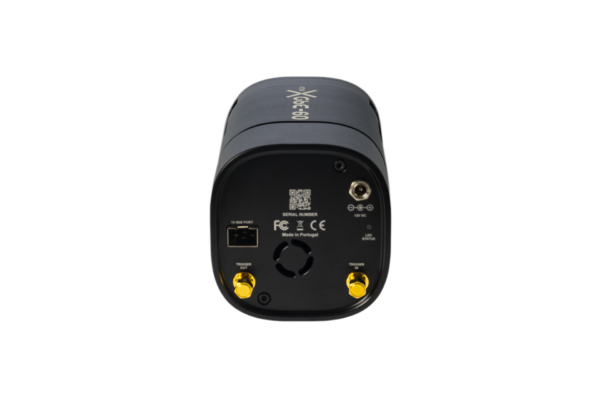

- SFP+: Ethernet connectivity up to 10 Gb/s
- Network addressable
- Sony IMX455 full-frame CMOS sensor
- 9576 × 6380 resolution, 16-bit ADC
SYSTEM ARCHITECTURE
Designed
to scale,
by design.

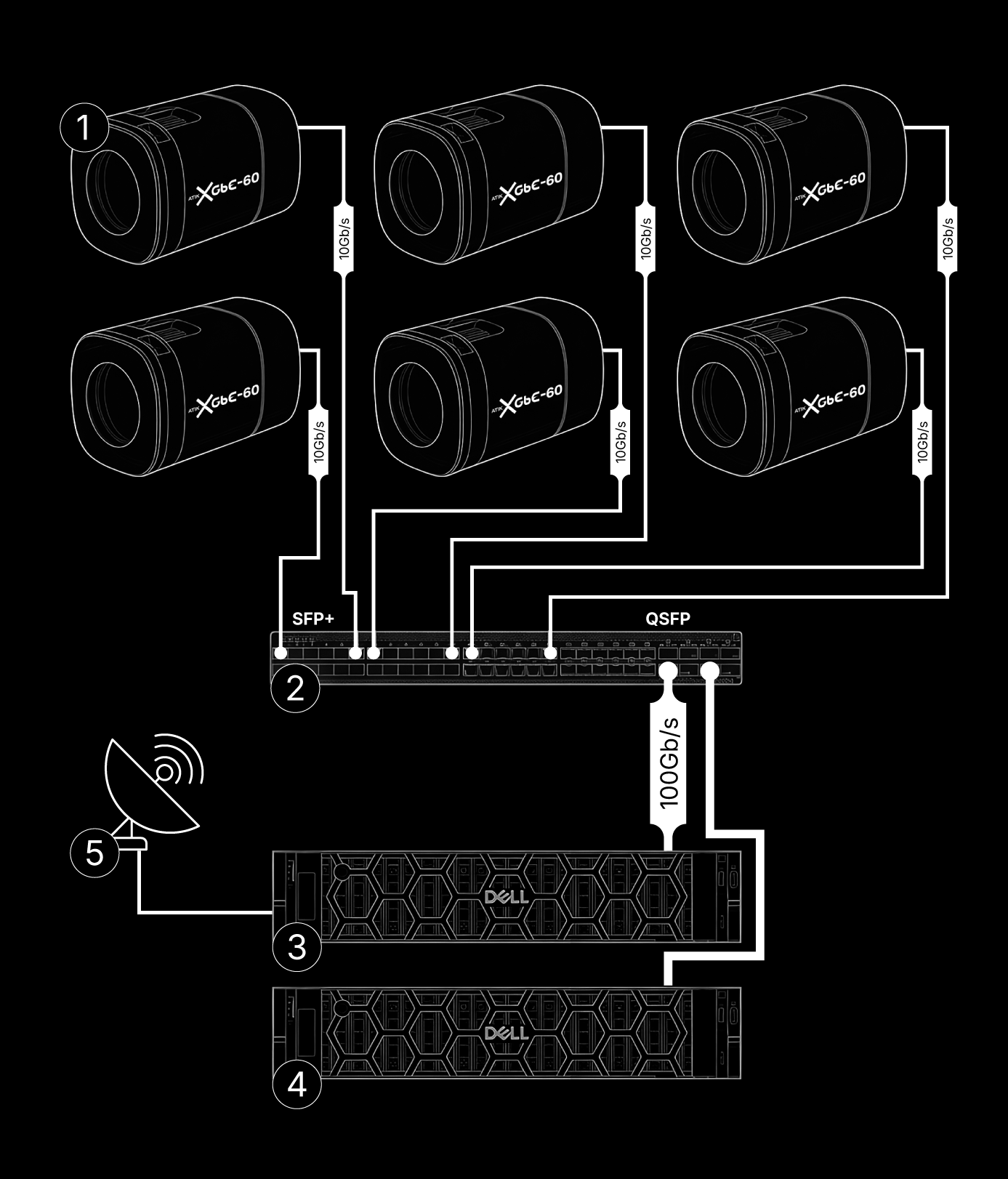

The XGbE-60 is engineered to operate as part of a coordinated cluster, where multiple cameras feed a centralized server array through a high-throughput Ethernet backbone. Each unit streams independently over its own 10 Gb/s SFP+ link, eliminating the bandwidth contention typical of daisy-chained or USB-bound imaging systems.
An aggregating switch consolidates the camera traffic and forwards it to the main acquisition server over a 100 Gb/s QSFP uplink, with a parallel path to a redundant backup server for failover and continuous archival. This topology scales linearly: adding cameras requires only an additional switch port and a fiber run, not a redesign of the host architecture.
A GPS reference feeds precise timestamps and synchronization signals into the server fabric, ensuring frame-level temporal alignment across every camera in the cluster. The result is a deterministic, observatory-grade pipeline suitable for SSA/SDA, optical tracking, and other distributed imaging workloads where timing and uptime are non-negotiable.
BUILT AROUND YOUR OPTICS
Customizable,
from sensor to
mount.
Every XGbE-60 is assembled around a modular core: sensor, cooling stack, electronics housing, levelling plate, and front mount can be specified independently to match your optical train, mechanical envelope, and integration constraints — without compromising the sealed, thermally regulated imaging chamber at its heart.
TALK TO AN ENGINEER
Planning a
multi-camera
deployment?
Tell us about your optical setup, network topology, and integration timeline — we’ll map the XGbE-60 to your requirements and walk you through the options.
TECHNICAL SPECIFICATIONS
Spec list
IMAGE SENSOR
Sony IMX455 CMOS (Mono/Color)
RESOLUTION
9576 x 6388
SENSOR DIAGONAL (EFFECTIVE PIXELS)
43.3 mm
(36 mm x 24 mm)
PIXEL SIZE
3.76 μm
FULL WELL CAPACITY
51 000 e-
READ NOISE
1.2 e- (High Gain Mode)
3.6 e- (Low Gain Mode)
DARK CURRENT
0.0002 e-/s/px at -15°C
MOUNT TYPE
M54 x 0.75 mm
ADC
16 bit
BACK FOCUS DISTANCE
17.5 mm ±0.5 mm (9 mm ±0.5 without levelling plate)
READING MODE
Electronic Rolling Shutter
EXPOSURE RANGE
0.001s to 24 hours
FRAME RATE
4 FPS
POWER SUPPLY
12VDC 5A
READY WHEN YOU ARE
Request
a tailored
quote.
Configurations, lead times, and volume pricing — get a written proposal scoped to your project, typically within one business day.
